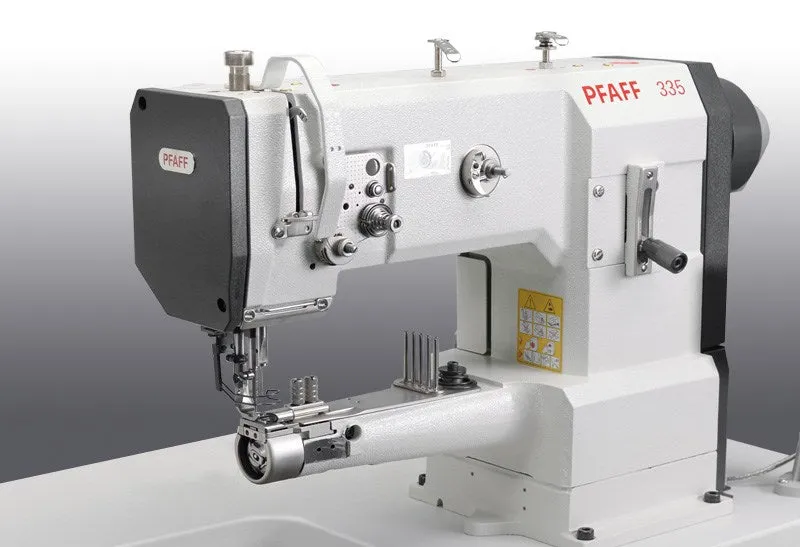

Pfaff 335G-17/01 Sewing Machine
Pfaff Cylinder Arm Large Bobbin Walking Foot Binder Complete on table with digital servo motor
Description
The PFAFF 335 is an universal cylinder-bed machine for use in small leather goods, leather garments, upholstery, shoes, etc. Working on tubular or pre-attached articles and standard sewing work on leather wear, bags and leathercraft articles. Assembly and binding operations as well as decorative stitching in small leather goods.
Features
- Cylinder-bed sewing machine for working on tubular or pre attached articles
- Excellent sewing quality with high performance and sewing reliability

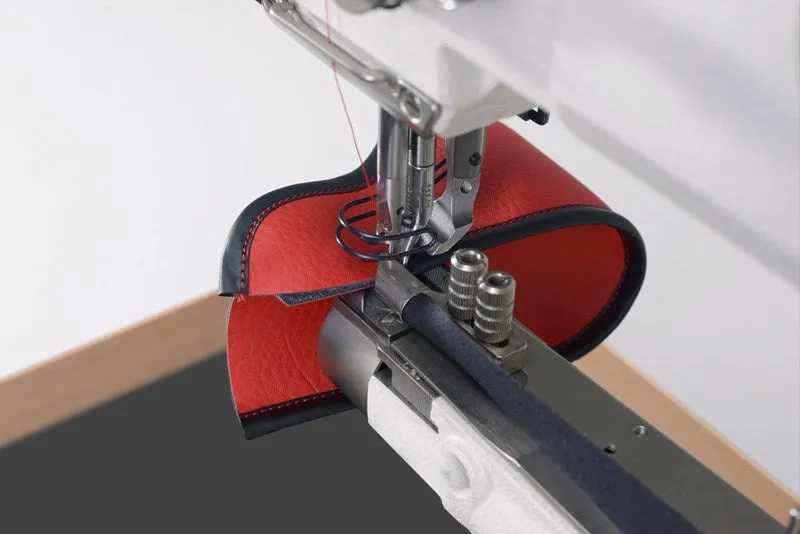

- Very neat bindings, even inside and outside curves, thanks to the moving binder, and tape is held close to the binding edge
- Quick conversion to binding applications by changing the sewing equipment
- Fewer bobbin changes due to the large hook (40% more bobbin capacity than standard hook)
-
Original PFAFF Industrial machines have an additional security label with several security features on the machine head. The advantage of this security label is the protection against growing product piracy
Applications
Assembly and binding operations as well as decorative stitching in small leather goods, shoes, carpet slippers, bags....and much more
Specifications
Needle system: 134-35 LR
Needle size: 80 - 100 Nm
Max. sewing speeds: 2.800 s.p.m
Max. stitch length: 6,0 mm
Top feed stroke: 7,0 mm
Stitch type: 301 (Lockstitich)
Thread type: synth. 40/3
Clearance under the sewing foot: max. 14,0 mm
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
